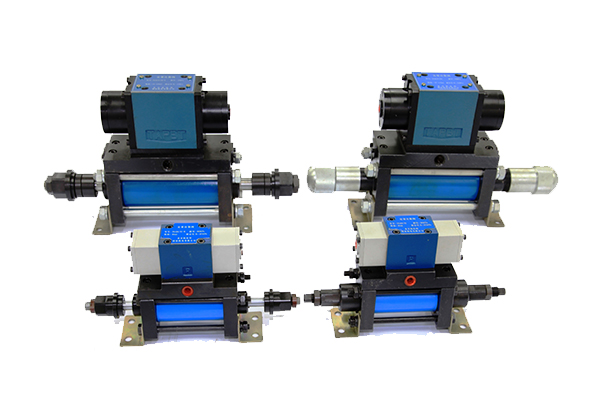

DLQ10/50 Grease Injection Valve
DLQ10/50 Grease Injection Valve

DLQ10/50 Grease Injection Valve

Description
DLQ10/50 quantitative grease valve is mainly applied for the bearing, automobile semi-axle and other quantitative grease filling devices on the automatic control line. It is composed of the measuring cylinder, control component (reversing valve) and other parts, which has the features of quantitative precision, convenient quantitative adjustment.

Features
1. The grease injection system mainly consists of the grease pump, quantitative grease injection valve, pneumatic control pipeline, grease gun, etc.
2. The valve shall be applied in the quantitative grease injection system, and used for quantitative supply of the dry oil lubricating grease.
3. The grease pressure is between 5MPa and 25MPa.

Application Field of Quantitative Grease Valve
1. Bearing production line, fill grease before the sealed bearing gland
2. Automobile industry: skylight, doors, windows, seat sliding chute, rear view mirror and other grease injection positions
3. Semi-axle production line, filling of the semi-axle bearing grease
4. 3C industry: sliding chute of DVD, VCD, CD and other players
5. Bicycle parts industry
6. Motor, electric tools, gear, etc

Technical Parameters of Quantitative Grease Valve
Type
Item
DLQ10/50-170
DLQ10/50-160K
Grease injection range(g)
30 to 170
30 to 160
Effective volume( ml)
176
164
Quantitative precision( g)
±1
±1
In place detection
No
Yes
Measuring cylinder diameter( mm)
50
50
Diameter( mm)
10
10
Oil inlet and outlet dimensions
ZG 3/8
ZG3/8
Pressure resistance( MPa)
30
Working pressure( MPa)
5 to 25
Ambient temperature(ºC )
10 to 50
Control air pressure( MPa)
0.3 to 0.6
Control air port
ZG 1/8
